Quick answer: In a U.S. dwelling-unit bathroom, GFCI protection applies to the bathroom receptacles, not only the one closest to the sink. The electrical plan also needs at least one receptacle within 3 feet of the outside edge of each basin and one or more 120-volt, 20-amp branch circuits for the required bathroom receptacle outlets. A GFCI receptacle, a GFCI circuit breaker, or correctly wired upstream protection can satisfy the protection function when the complete installation follows the adopted code and the product instructions.
That short answer is useful, but it does not settle placement, circuit loading, tub and shower clearances, tamper resistance, or the difference between a 15A face and a 20A branch circuit. Those details are where remodels fail inspection and purchasing specifications become inconsistent.
The National Electrical Code is adopted and amended locally. Always confirm the edition enforced by the authority having jurisdiction (AHJ), especially before a permit, renovation, hotel project, or multi-unit purchase.
The Bathroom Rules That Work Together
Bathroom electrical compliance is not one rule. Several requirements work as a system.
| Planning question | Code concept to verify | Practical meaning |
|---|---|---|
| Which bathroom receptacles need GFCI? | NEC 210.8(A)(1) for dwelling units | Plan protection for the bathroom receptacles, not only outlets within a guessed distance from water. |
| How close must an outlet be to a basin? | NEC 210.52(D) | Provide at least one receptacle within 3 ft of the outside edge of each basin. |
| What circuit supplies bathroom receptacles? | NEC 210.11(C)(3) | Provide one or more 120V, 20A branch circuits for the required receptacle outlets. |
| Can a receptacle be inside the tub or shower zone? | NEC 406.9(C) and local amendments | Keep receptacles out of prohibited bathtub and shower spaces; GFCI does not make a bad location acceptable. |
| Is tamper resistance required? | NEC 406.12 and project rules | Dwelling-unit 15A and 20A receptacles generally need a listed tamper-resistant design unless an exception applies. |
The NFPA page for NFPA 70, the National Electrical Code is the starting point for the official code and adoption resources. A blog should help you frame the questions, but the adopted text and the AHJ control the final installation.
Do All Bathroom Outlets Need GFCI Protection?
For a typical U.S. dwelling unit, yes: plan GFCI protection for all receptacles located in the bathroom. The rule is based on the room classification, so a receptacle on the far wall is not automatically exempt because it sits more than 6 feet from the sink.
This is a common point of confusion. The familiar 6-foot measurement applies to certain sink-related rules in other locations. The bathroom requirement is its own listed location. Treating the bathroom as though only the vanity outlet needs protection can leave a toilet-area, makeup-station, or wall receptacle outside the protection plan.
GFCI protection may be delivered in three common ways:
- A GFCI receptacle at each point of use.
- One GFCI receptacle protecting correctly connected downstream receptacles through its LOAD terminals.
- A compatible GFCI circuit breaker protecting the branch circuit from the panel.
The ordinary-looking downstream receptacle can be code-compliant when it is actually protected and labeled as required. Its appearance alone does not prove protection. Test the finished installation from every protected outlet and document which device controls which locations.
For a broader comparison of the two protection methods, see Faith’s GFCI receptacle vs. GFCI circuit breaker guide.
The 3-Foot Basin Rule Is About Access, Not the GFCI Boundary
NEC 210.52(D) requires at least one receptacle outlet within 3 feet of the outside edge of each bathroom basin. This convenience rule reduces the temptation to stretch appliance cords or extension cords across the room.
The measurement does not mean that only receptacles inside that 3-foot area need GFCI protection. These are two different questions:
- The placement rule makes sure a receptacle is accessible to the basin.
- The GFCI rule protects bathroom receptacles against ground-fault shock risk.

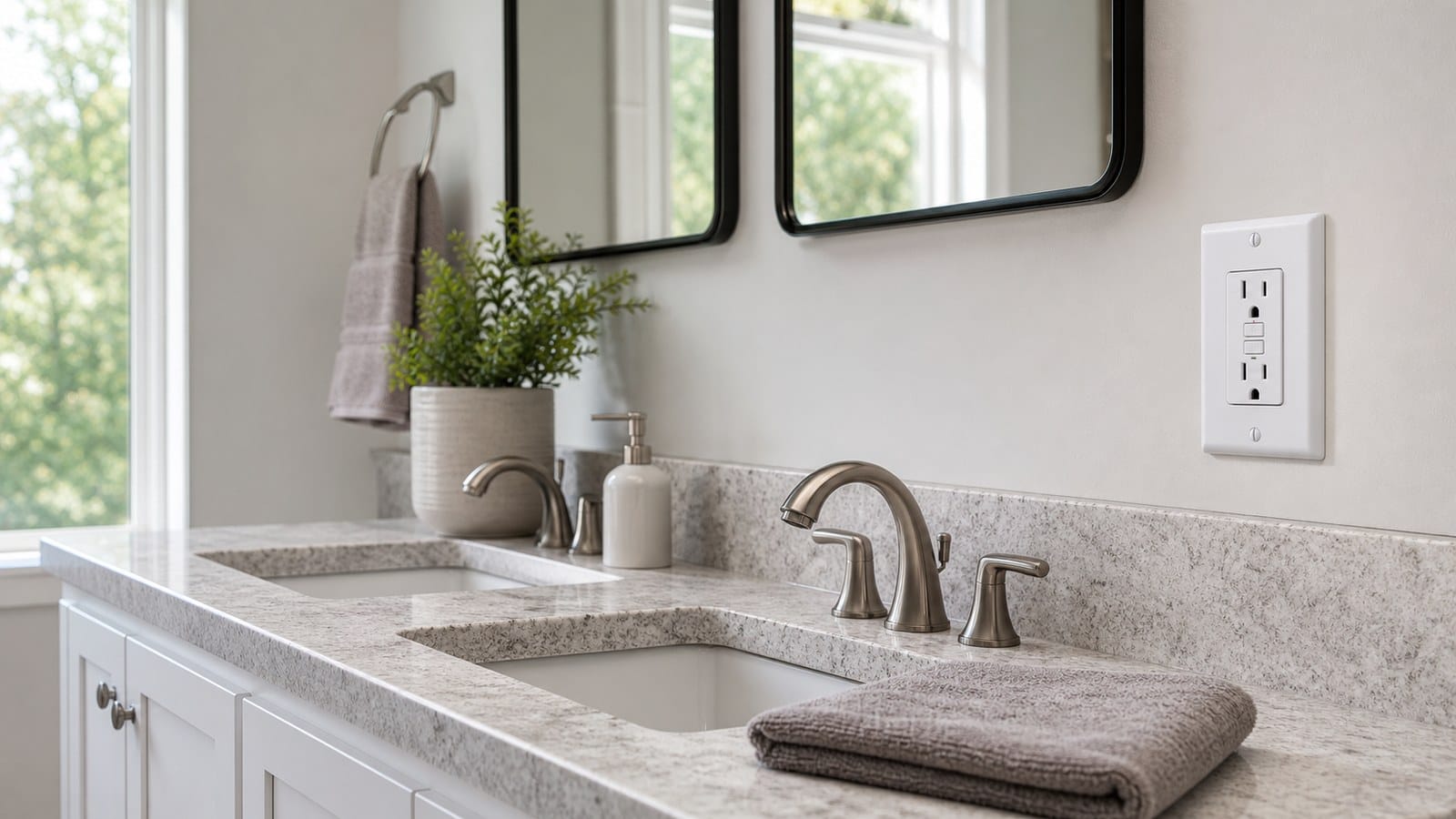

A double vanity may need one or more receptacles depending on the distance from each basin edge. One centrally placed outlet can sometimes serve both basins if it is within the permitted distance of both, but usability matters too. Two people should not need a cube tap or extension cord because the minimum layout was too sparse.
Final location choices should also respect the limitations for countertops, cabinet sides, tub and shower spaces, accessibility, and the listed installation instructions. Do not place an outlet where a plug, hair-dryer cord, or wall adapter will interfere with a sink, mirror, drawer, or wet area.
Bathroom Receptacles and the 20-Amp Branch Circuit
The required bathroom receptacle outlets are supplied by one or more 120-volt, 20-amp branch circuits. The circuit rule and the receptacle face rating are related, but they are not identical.
Under the NEC receptacle-rating rules, a 15A duplex receptacle can be permitted on a 20A branch circuit when the circuit supplies two or more receptacles or outlets. A single receptacle on an individual branch circuit has different matching requirements. That is why buyers should not reduce the specification to “20A circuit equals 20A T-slot at every location.” The complete circuit design matters.
Bathroom circuits are commonly arranged in one of two ways:
- A 20A circuit supplies receptacle outlets in more than one bathroom and supplies no other outlets.
- A 20A circuit supplies one bathroom only; under the NEC exception, it may also supply other equipment in that same bathroom, subject to the applicable load and equipment rules.

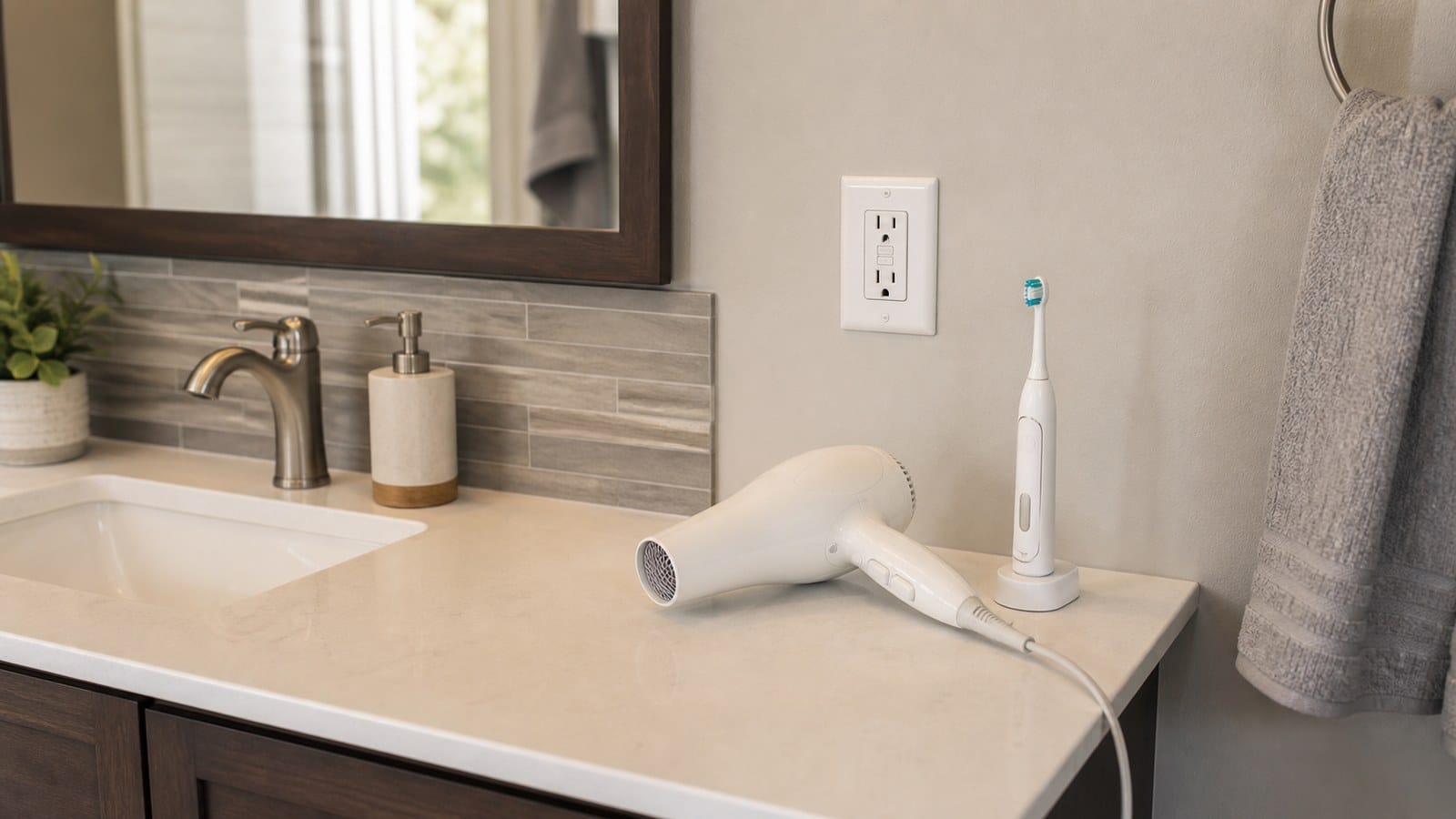

Hair dryers and grooming appliances can draw substantial current. Circuit planning should consider simultaneous use, fixed equipment, lighting, exhaust fans, heated seats, and manufacturer instructions rather than treating the code minimum as a load calculation.
| Project condition | Better design question |
|---|---|
| One small powder room | Will the required 20A circuit serve only this bathroom or bathroom receptacles elsewhere? |
| Double vanity | Can both users reach protected receptacles without adapters or extension cords? |
| Electric bidet seat | Is the receptacle location permitted, accessible, and consistent with the equipment instructions? |
| Hotel or multifamily project | Does the chosen protection method simplify testing, reset access, and unit turnover? |
| High-end bathroom with multiple loads | Should receptacles and fixed equipment be separated to reduce service problems? |
Keep Receptacles Out of Prohibited Tub and Shower Spaces
GFCI protection reduces shock risk; it does not authorize a receptacle anywhere water may reach it. NEC 406.9(C) restricts receptacles in bathtub and shower spaces, including the space directly over them. Exact geometry and exceptions should be checked in the edition adopted locally.
This matters during design because a vanity can be pushed close to a shower enclosure. A receptacle that works on a two-dimensional cabinet elevation may fall inside a prohibited zone once the shower threshold, glass, and wall geometry are considered.
Use this order during layout review:
- Mark the actual tub or shower space from the finished plans.
- Mark the required basin-access area.
- Place receptacles where both conditions can be satisfied.
- Check cabinet drawers, mirrors, medicine cabinets, and splash exposure.
- Confirm the plan with the AHJ before rough-in if the boundary is close.
Do not solve a placement conflict by adding a weather-resistant receptacle or a cover. WR construction and covers address environmental exposure; they do not override a prohibited location.
Which GFCI Features Belong in a Bathroom Specification?
A bathroom product schedule should state more than amperage and color. At minimum, specify the protection function, device configuration, listing, ratings, environmental features, and the documents required for approval.
Self-Test and Reset Lockout
Modern GFCIs covered by UL 943 include auto-monitoring or self-test functions. The device periodically checks important parts of the protection system and should provide an indication or deny power when protection is no longer available, depending on its design.
Self-test does not eliminate the manual TEST button. Follow the device instructions and test after installation and periodically in service. Faith’s UL 943 self-test GFCI guide explains the distinction between automatic monitoring and a manual functional test.
Tamper-Resistant (TR)
For dwelling units, TR shutters are generally part of the 15A and 20A receptacle requirement. The internal shutter system helps resist insertion of a single foreign object. It is not a substitute for supervision, a cover, or proper use.
TR operation should be checked for consistent plug insertion. A shutter that is unusually stiff, damaged, or inconsistent across samples can become an installation complaint even if the visible design looks acceptable.
Weather-Resistant (WR)
An ordinary indoor bathroom is not automatically an outdoor wet location. WR construction may be appropriate when the actual installation is damp, corrosive, or otherwise classified for it, but buyers should not assume the letters WR solve ventilation, leakage, condensation, or enclosure problems.
Faith’s WR vs. TR GFCI comparison covers the different purposes of the two markings.
Indicator Light
An LED can help a user identify normal, tripped, miswired, or end-of-life conditions, but color meanings are not universal. The product instructions must define steady, flashing, and dark states. For hotels, apartments, and maintenance teams, consistent indicator logic across the purchased model family is more valuable than a bright LED without clear documentation.
Listing and Traceability
Verify the certification record for the exact model, amperage, color, and feature set being ordered. Compare the device markings, instruction sheet, carton label, specification sheet, and certification database. A generic “UL/ETL available” statement is not enough for a controlled project submittal.
GFCI Receptacle or GFCI Breaker for a Bathroom?
Both approaches can work. Choose based on access, circuit layout, panel compatibility, appearance, and maintenance.
| Method | Best fit | Main advantage | Main caution |
|---|---|---|---|
| GFCI receptacle at the vanity | Remodels and point-of-use replacement | TEST and RESET are visible and convenient | Deep device and conductors need adequate box space. |
| One receptacle protecting downstream outlets | Several accessible outlets on one run | Fewer GFCI devices | LINE/LOAD errors or poor labels make troubleshooting difficult. |
| GFCI breaker | New construction or a clean-device aesthetic | Whole-circuit protection from the panel | Reset access and panel compatibility must be planned. |
Do not place the only reset point where occupants or service staff cannot access it. A GFCI hidden behind a fixed vanity drawer, large mirror, or locked maintenance panel creates avoidable callbacks.
Residential, Hotel, and Commercial Bathrooms Are Not Identical
Dwelling-unit NEC rules are not the only requirements in the U.S. market. Workplaces, hotels, healthcare spaces, and commercial occupancies can bring additional NEC articles, OSHA rules, accessibility standards, project specifications, and local amendments.
For workplaces, OSHA 1910.304 requires GFCI protection for certain 125-volt, single-phase, 15A and 20A receptacles installed in bathrooms. Healthcare locations require a more specialized design review; do not carry a residential bathroom detail into a patient-care area without checking the applicable healthcare rules.
For a national distributor, a practical product family may include 15A and 20A configurations, TR options, hospital-grade variants where actually required, common colors, matching wall plates, and clear English installation instructions. The purchase order should map each SKU to its intended occupancy and application.
Installation and Commissioning Checklist
The following checks are useful for contractors, inspectors, and property teams. Opening the box, identifying conductors, and changing wiring should be performed by a qualified person.
- Confirm the locally adopted code edition and approved drawings.
- Verify the branch-circuit rating, conductor size, breaker type, and panel compatibility.
- Confirm that each basin has the required accessible receptacle placement.
- Check that no receptacle is inside a prohibited tub or shower space.
- Verify the exact GFCI model, listing, amperage, voltage, TR/WR markings, and wall-plate fit.

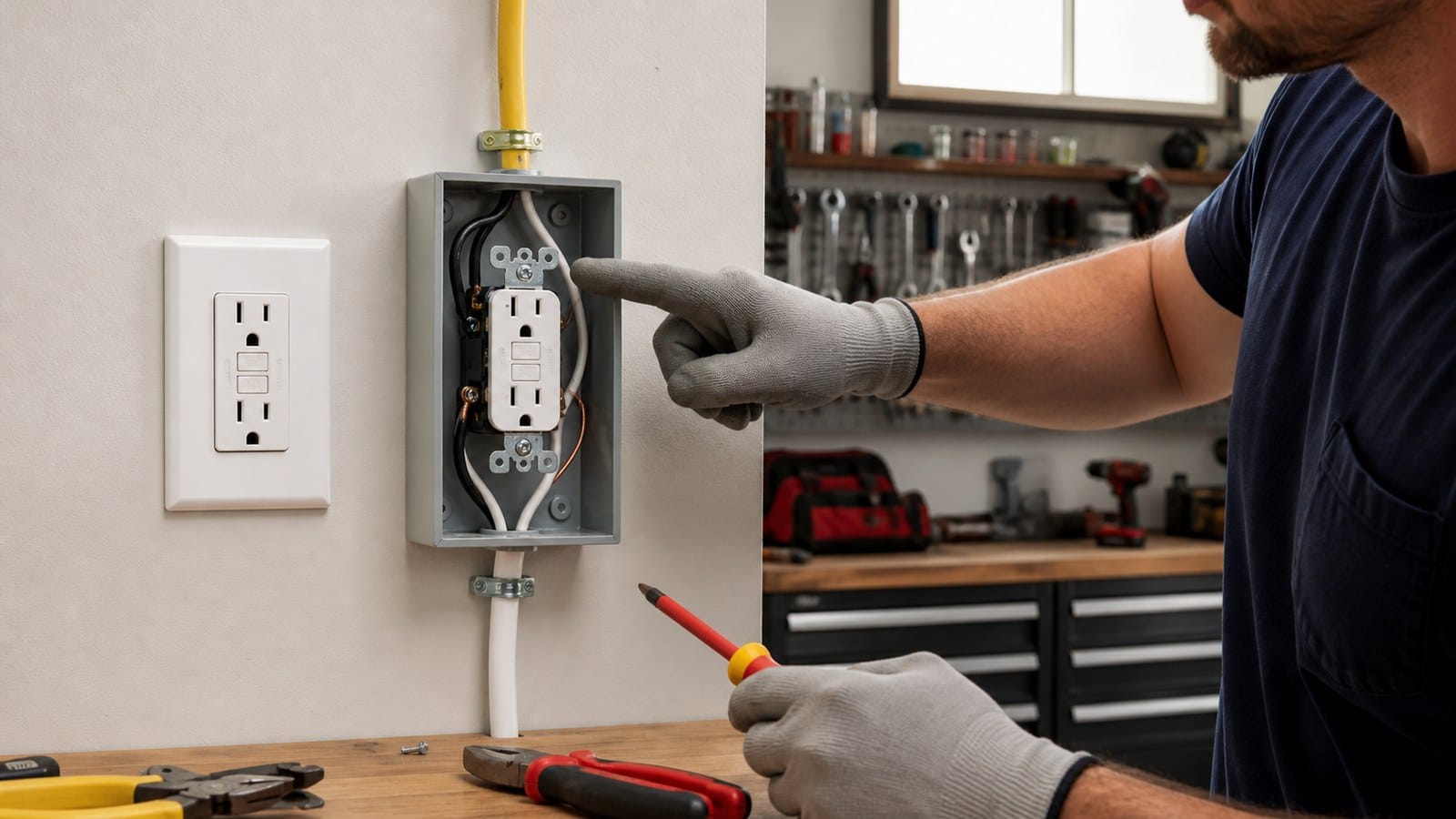

- Confirm which devices are connected to LINE and which outlets, if any, are protected from LOAD.
- Energize and follow the manufacturer’s initial test procedure.

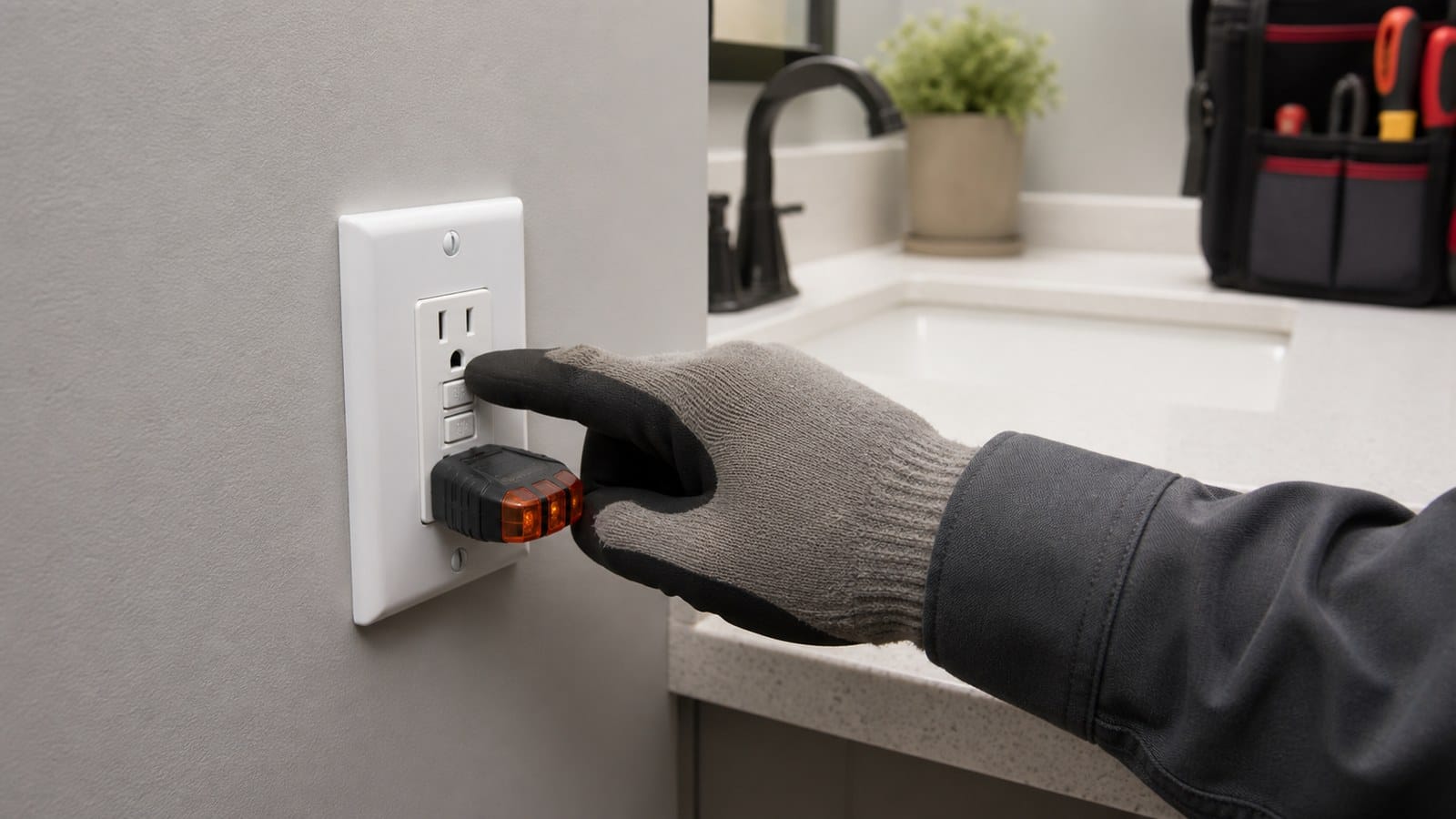

- Press TEST and verify power is removed at the GFCI face and every intended downstream outlet.
- Press RESET and verify power is restored.
- Apply required downstream labels and update the panel directory.
- Record the controlling GFCI or breaker for turnover and maintenance.
The CPSC home safety checklist advises consumers to protect bathroom receptacles with GFCIs and test them monthly. If TEST does not cut power, RESET will not restore it, or the device is hot, damaged, wet, buzzing, or discolored, stop using the receptacle and have it evaluated.
Buyer Checklist for Bathroom GFCI Projects
For a distributor, contractor, or private-label program, use a controlled checklist instead of approving a sample by appearance.
- Exact 15A/20A and 125V configuration required by the schedule.
- Current NRTL listing for each ordered model and feature set.
- Self-test and reset-lockout behavior documented in the instructions.
- TR and WR markings matched to the intended location.
- LINE/LOAD markings readable after the device is pulled from the box.
- Terminal range and torque values included in the instruction sheet.
- Device depth compatible with common renovation boxes and conductor count.
- Indicator-light states explained without relying on color alone.
- Plug insertion and retention consistent across the sample lot.
- English packaging, warnings, date/lot traceability, and replacement guidance.
- Matching wall plates and color tolerances approved before bulk production.
- Change-control process for components, markings, instructions, and certification files.
Faith Electric has manufactured wiring devices since 1996. Buyers evaluating a self-test tamper-resistant GFCI model should still confirm the current certification record and complete project specification for the exact SKU they intend to purchase.
Common Bathroom GFCI Mistakes
Protecting Only the Outlet Nearest the Sink
The bathroom classification is the key issue. A receptacle across the room may still require GFCI protection.
Confusing the 3-Foot and 6-Foot Rules
The 3-foot basin rule establishes convenient receptacle placement. It does not define the only GFCI-protected area in a bathroom.
Using GFCI as Permission for Unsafe Placement
A GFCI does not make a receptacle acceptable inside a prohibited bathtub or shower space.
Treating 20A Circuit and 20A Receptacle as the Same Decision
The required branch circuit is 20A, but permitted receptacle configurations depend on whether the circuit has one or multiple receptacles and on the complete design.
Hiding the Reset Point
An inaccessible GFCI behind cabinetry or a fixed appliance is hard to test and reset. Maintenance access should be part of the layout.
Skipping the Downstream Test
Seeing a green light is not commissioning. Test every intended protected outlet and verify actual loss and restoration of power.
FAQ
Does every outlet in a bathroom have to be a GFCI receptacle?
Every bathroom receptacle that requires protection does not need TEST and RESET buttons on its face. Protection can come from a GFCI breaker or an upstream GFCI device when the downstream wiring and labeling are correct.
How far must a bathroom outlet be from the sink?
At least one receptacle must be located within 3 feet of the outside edge of each basin. That is a required-access rule, not a statement that outlets farther away can skip GFCI protection.
Can a bathroom GFCI be 15 amps on a 20-amp circuit?
A 15A duplex receptacle can be permitted on a 20A branch circuit that supplies two or more receptacles or outlets. A single receptacle on an individual branch circuit has different rating requirements. Have the full design verified rather than choosing by face style alone.
Does a bathroom need a dedicated 20-amp circuit?
The NEC requires one or more 120V, 20A branch circuits to supply bathroom receptacle outlets. The circuit generally cannot serve unrelated outlets; a limited exception permits a circuit serving one bathroom to supply other equipment in that bathroom. Load calculations and local rules still apply.
Do bathroom GFCIs need to be weather-resistant?
Not solely because the room is a bathroom. Use WR products when the actual location and environment require them. TR, WR, and GFCI describe different safety or durability functions.
How often should a bathroom GFCI be tested?
Follow the manufacturer instructions. CPSC consumer guidance recommends monthly testing. Press TEST and verify power turns off, then press RESET and verify that it returns.
Final Takeaway
Bathroom GFCI compliance starts with four separate decisions: protect the bathroom receptacles, put an accessible outlet within 3 feet of each basin, supply the required receptacle outlets from the proper 20A branch circuit, and keep receptacles out of prohibited tub and shower spaces. Then specify a listed, self-test product with the correct configuration and project features.
For B2B sourcing, treat the device, instructions, packaging, certification record, and traceability as one approval package. That approach prevents a low-cost receptacle choice from becoming an inspection problem or a portfolio-wide maintenance issue.
Safety note: This article provides general U.S. product-selection and code-planning information. It is not a substitute for the locally adopted electrical code, manufacturer instructions, permits, inspection, or work by a qualified electrician.
