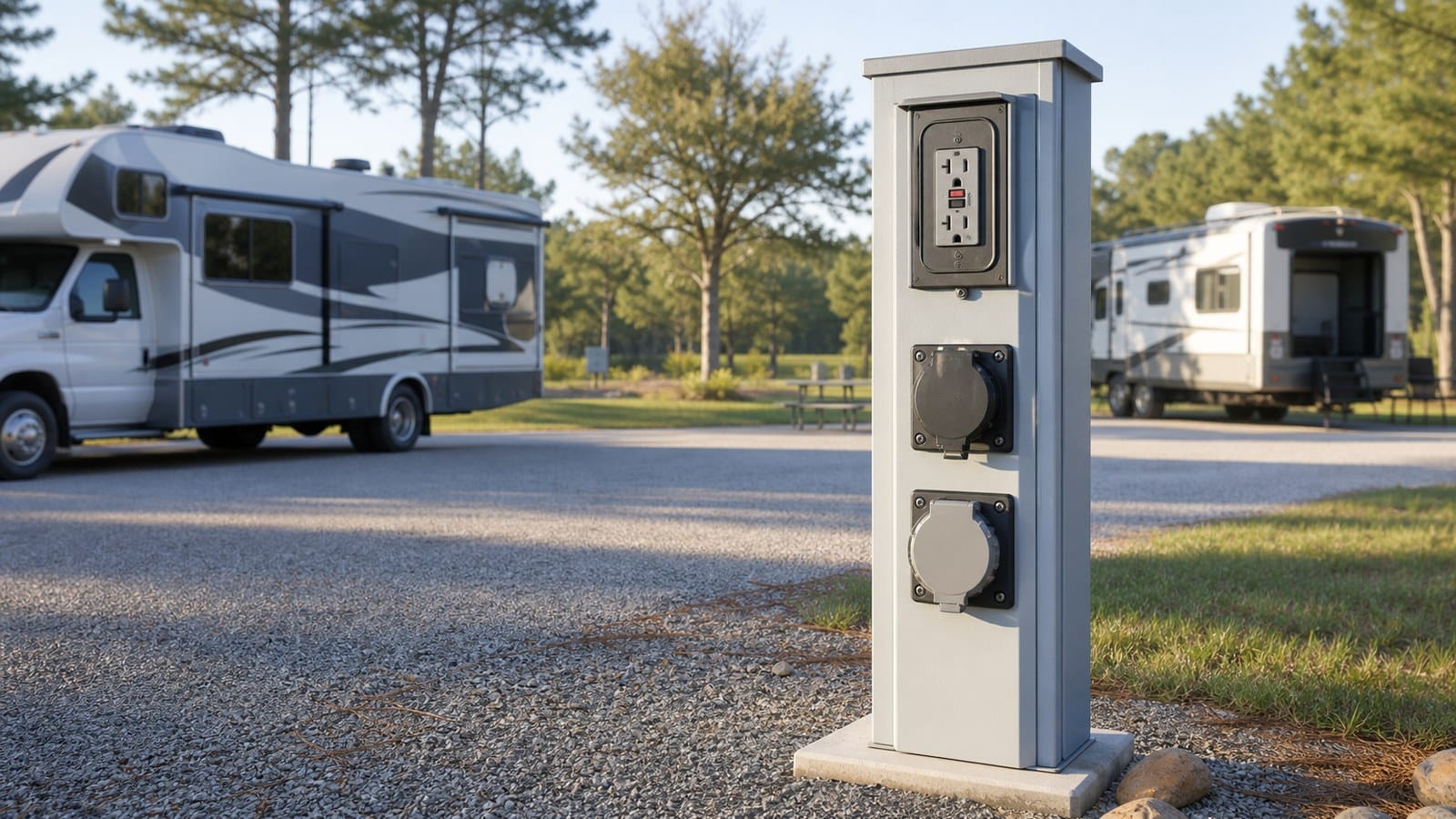

At an RV park, the familiar 125-volt, 15- and 20-amp receptacles at site equipment need listed GFCI protection for personnel. Every electrically supplied RV site also needs at least one 20-amp, 125-volt weather-resistant receptacle under the modern NEC framework. The 30- and 50-amp RV connections are different configurations and should not be treated as ordinary 15/20-amp GFCI receptacles. The adopted code edition, local amendments, project drawings, and the authority having jurisdiction (AHJ) still control the final design.
That short answer is easy to miss when a pedestal contains several outlets behind one cover. A 20-amp convenience receptacle, a 30-amp travel-trailer connection, and a 50-amp motorhome connection may share an enclosure, but they do not automatically share the same code rule, device type, or protective method.
For park owners and equipment buyers, the safest purchase order does not say only “RV pedestal with GFCI.” It identifies every receptacle, voltage, current rating, weather-resistance requirement, GFCI location, enclosure, breaker, neutral arrangement, listing, markings, and maintenance access point.
Quick requirement map for an RV-site pedestal
| Pedestal connection | Typical use | Core specification question |
|---|---|---|
| 15A or 20A, 125V receptacle | General-use tools, tent sites, small loads, adapters | Is it protected by a listed Class A GFCI and readily accessible for testing/reset? |
| 20A, 125V receptacle required at an RV site | Standard general-use connection | Is the receptacle weather-resistant and installed in a suitable outdoor enclosure? |
| 30A, 125V RV receptacle | Common travel-trailer shore connection | Is the correct RV configuration provided, with the adopted NEC and project GFCI requirements verified? |
| 50A, 125/250V RV receptacle | Larger RV and motorhome shore connection | Is the configuration, circuit, enclosure, neutral, breaker, and adopted-code treatment documented? |
| Additional exterior receptacle | Park equipment or guest convenience | Which rule applies based on voltage, amperage, location, and intended use? |
The NFPA code-development record for NEC 551.71 shows the 20-amp weather-resistant receptacle requirement and the separate treatment of 30- and 50-amp RV-site receptacles. A later NFPA 2023-cycle panel report documents ongoing work on the RV-park language. These are useful references, but a project team should use the actual adopted code text and local interpretation rather than a web summary.
Why the 20A receptacle receives special attention
The 20-amp, 125-volt receptacle is the part of the pedestal most similar to an outdoor household receptacle. Guests may use it for small appliances, extension cords, maintenance tools, tent-site equipment, or an adapter. It is also exposed to the same hazards that make outdoor GFCI protection important: wet soil, rain, condensation, damaged cords, metal RV bodies, and people standing on conductive surfaces.
The NEC rule in 551.71 requires every RV site with electrical supply to include at least one 20-amp, 125-volt weather-resistant receptacle. The GFCI portion of the rule covers the 125-volt, single-phase, 15- and 20-amp receptacles at the site equipment.
“Weather-resistant” and “GFCI” are not interchangeable claims:
- GFCI addresses shock risk by opening the circuit when current leaves the intended path.
- WR identifies receptacle construction intended to better tolerate outdoor environmental exposure.
- The enclosure and cover keep water and debris away from live parts when properly selected and installed.
- Overcurrent protection protects conductors and equipment from overloads and short circuits.
A product can need all four layers. Faith’s WR vs. TR GFCI guide explains why weather resistance and tamper resistance solve different problems.
Does the GFCI device itself need a WR marking?
Do not answer this from the face of one sample. The code language for RV-site equipment distinguishes the required WR receptacle from the GFCI device that provides protection. A pedestal can be designed with a WR GFCI receptacle, a WR receptacle protected upstream, or another listed arrangement allowed by the adopted code and product listing.
For procurement, ask two separate questions:
- Which receptacle is exposed to weather and must carry the appropriate WR rating?
- Where is the listed Class A GFCI function located, and is its test/reset interface readily accessible?
If the GFCI is inside a breaker compartment, confirm that normal testing and resetting do not require a guest to access energized parts. If it is a receptacle-type GFCI behind a cover, verify that the cover opens far enough for the TEST and RESET controls to be used without removing the enclosure front.
Faith’s GFCI receptacle vs. GFCI circuit breaker comparison covers the broader tradeoff between local reset access and panel-based protection.
Do 30A and 50A RV receptacles need GFCI protection?
Do not extend the 15/20-amp rule by assumption. Traditional NEC 551.71 language specifically requires GFCI protection for the 125-volt, 15- and 20-amp receptacles and separately addresses 30- and 50-amp RV connections. Those larger connections use different NEMA configurations and circuit arrangements.
This does not mean a buyer should write “no GFCI” on every 30A or 50A pedestal order. The correct answer can change with:
- the NEC edition adopted by the state or municipality;
- local amendments or campground-specific requirements;
- whether the outlet is at an RV park or at a dwelling, storage building, service yard, or other location;
- how the branch circuit and site equipment are classified;
- project specifications that exceed the minimum code; and
- the listing and instructions for the complete pedestal assembly.
The location distinction is especially important. A 30A or 50A receptacle installed at a house for an RV is not automatically governed in exactly the same way as site equipment inside an RV park. Ask the designer and AHJ which rule controls before ordering protection hardware.
What “listed Class A GFCI” means for the buyer
UL Solutions identifies receptacle GFCIs, portable GFCIs, and circuit-breaker GFCIs as product types evaluated under UL 943/CSA C22.2 No. 144.1. Class A devices are intended for personnel protection. The familiar trip range is measured in milliamperes, far below the current that normally operates a branch-circuit breaker.
A purchase specification should not rely on “GFCI style,” a TEST/RESET appearance, or an isolated certificate image. Require the exact manufacturer, model, ratings, listing directory identity, conditions of acceptability, and approved markings for the supplied configuration.
For a private-label product, verify how the brand name and model are connected to the underlying certification. Faith Electric has manufactured wiring devices since 1996. Faith’s private-label GFCI checklist gives importers and distributors a controlled way to review listing scope, artwork, samples, and change management.
Design the pedestal as a system, not a faceplate
The receptacle is one component in a wet-location assembly. A reliable pedestal specification coordinates the following items.
Enclosure and cover
Specify the enclosure rating and cover arrangement for the actual exposure. A weather-resistant receptacle is not waterproof. Poor cover geometry, failed gaskets, low mounting, missing drainage, or an opening facing irrigation spray can still allow water to reach live parts.
Breakers and conductor ratings
Identify the breaker type and rating for every receptacle. Confirm conductor size, terminal range, temperature rating, neutral requirements, and available fault-current suitability through the project engineer and listed assembly documentation.
Neutral separation and wiring layout
RV pedestals commonly combine multiple circuits in a compact enclosure. Neutral conductors must remain correctly paired with their corresponding ungrounded conductors through any GFCI sensing path. Borrowed or crossed neutrals can create immediate trips and dangerous diagnostic confusion.

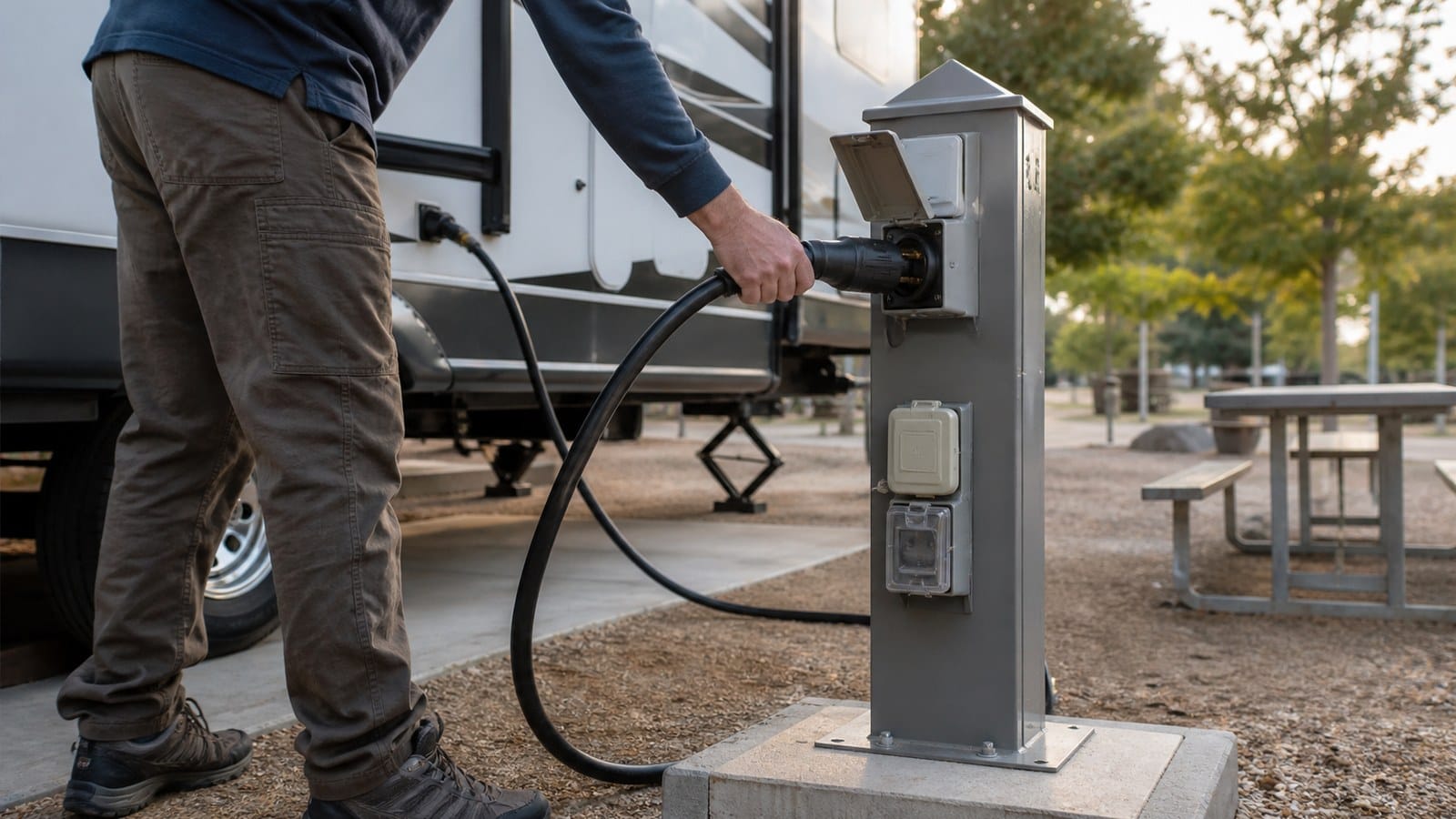

Accessibility
Guests and maintenance staff need to identify a tripped device and reset it safely. Do not hide the controlling GFCI in a locked building without a maintenance plan, and do not place a receptacle-type GFCI where the plug or cover blocks the buttons.
Labels
Mark each connection by voltage and current rating. Identify the GFCI-protected receptacle and the controlling device. If one GFCI protects downstream receptacles, document that relationship inside the pedestal and in the park maintenance record.
A 12-point procurement checklist
Use this checklist before accepting a quotation, submittal, or approval sample.
- Adopted code: Record the NEC edition and local amendments for the project address.
- Site type: Confirm whether the equipment is inside an RV park, a campground tent site, a storage facility, or a dwelling.
- Receptacle schedule: List every 15A, 20A, 30A, and 50A configuration per site.
- GFCI method: Identify which device protects each covered receptacle.
- WR requirement: Identify each weather-resistant receptacle by exact model.
- Enclosure: State the outdoor enclosure and cover rating, material, gasket, drainage, and mounting details.
- Accessibility: Show how TEST and RESET controls remain readily accessible after plugs are connected.
- Certification: Verify the complete assembly and each critical device in the applicable listing directory.
- Electrical ratings: Confirm voltage, current, frequency, conductor range, terminal torque, and breaker compatibility.
- Markings and instructions: Approve labels, wiring diagrams, warnings, and installation instructions before production.
- Sample testing: Inspect production-representative samples, including doors, covers, GFCI operation, and cord clearance.
- Change control: Require approval before substitutions to receptacles, breakers, terminals, enclosure parts, or artwork.

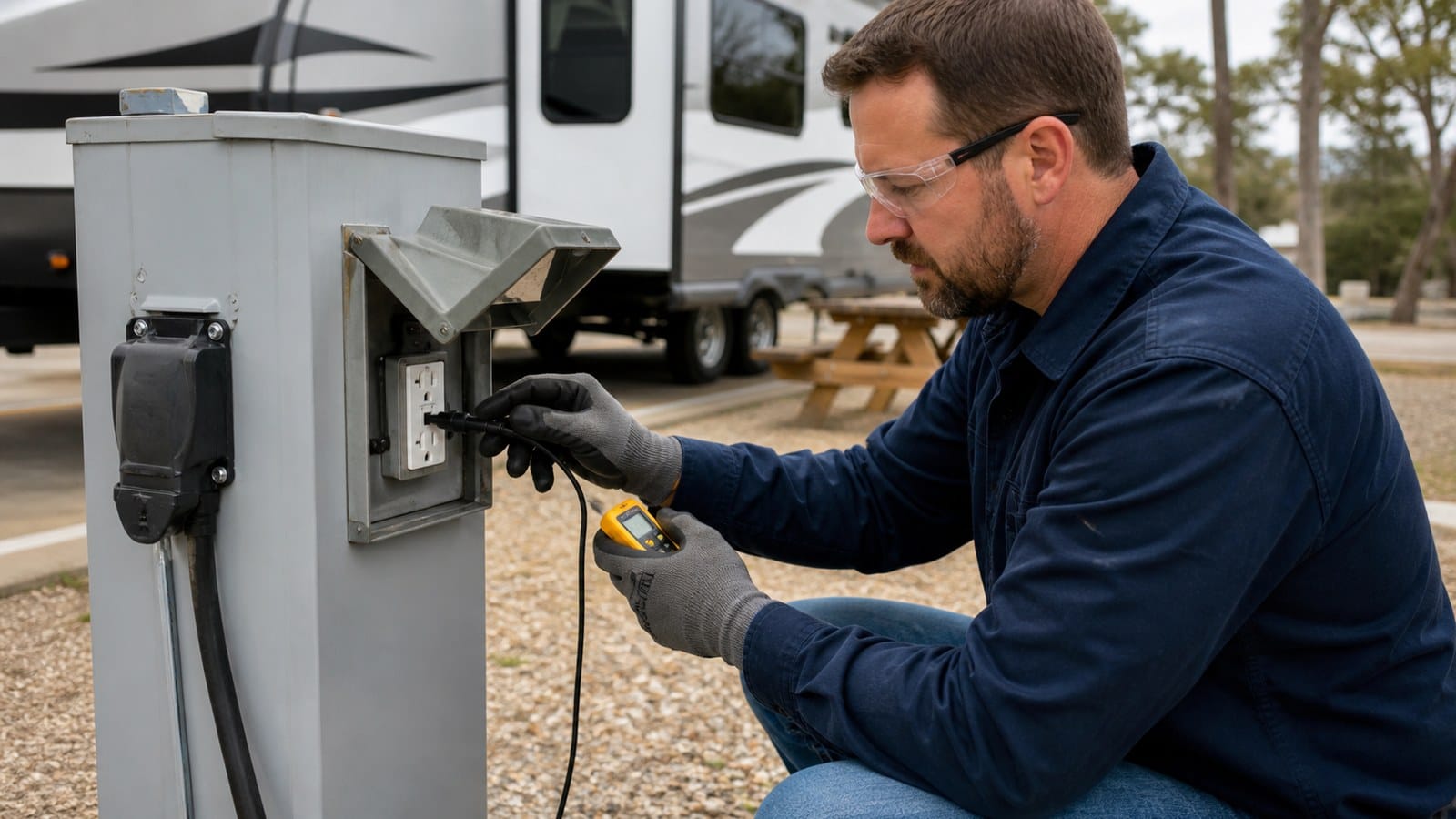

Commissioning and maintenance at the park
Every site should be inspected and functionally tested before it is opened to guests. The commissioning record should connect the pedestal number to the circuit, breaker, GFCI device, test result, and date.
Recommended site checks include:
- inspect enclosure damage, corrosion, insects, debris, and evidence of water entry;
- verify covers close and latch with no plug connected;
- confirm labels are readable and match the circuit schedule;
- operate each GFCI using the device’s own TEST and RESET controls;
- verify downstream protected receptacles lose and regain power as intended;
- check receptacle retention and visible contact damage with suitable equipment;
- document any trip that occurs under load rather than repeatedly resetting it; and
- remove a damaged or wet pedestal from service until it is repaired and tested.
The U.S. Consumer Product Safety Commission GFCI fact sheet explains the role of GFCIs in reducing severe shock risk. Follow the device and pedestal manufacturer’s maintenance instructions, plus the project’s inspection program.
Why RVs can trip a 20A GFCI
A trip is a safety signal, not proof that the pedestal is defective. Possible causes include leakage from an RV appliance, a damaged shore cord or adapter, moisture in a connector, neutral-to-ground contact downstream, a wiring error, cumulative leakage from several loads, or a failed protective device.
Park staff should not defeat the GFCI to make one RV work. Use this sequence:
- Disconnect the RV and verify whether the pedestal GFCI resets with no load.
- Inspect only accessible, de-energized cord and connector surfaces for damage or moisture.
- Test the pedestal using the approved maintenance procedure.
- If the pedestal passes, ask the RV owner to have the vehicle and cord set inspected.
- If the pedestal does not pass, lock it out and have a qualified person diagnose the circuit.
Never connect neutral to ground downstream to stop a trip. That changes fault-current paths and can energize exposed metal under abnormal conditions.
Common specification mistakes
- Writing “GFCI pedestal” without identifying which receptacles are protected.
- Assuming a 30A or 50A RV connection follows the same rule as a 20A receptacle.
- Confusing WR construction with a waterproof enclosure.
- Buying a component with a certification mark but not verifying the complete assembly.
- Locating the reset device where guests or technicians cannot reach it.
- Allowing one device to interrupt several sites without documenting the protection scope.
- Ignoring neutral routing when multiple circuits share one enclosure.
- Approving artwork and labels before the final listed configuration is confirmed.
FAQ
Does every RV site need a 20-amp receptacle?
Under the modern NEC 551.71 framework, every RV site with electrical supply needs at least one 20-amp, 125-volt receptacle. Verify the edition and amendments adopted for the project.
Must the 20A RV-site receptacle be weather-resistant?
Yes under the referenced modern NEC language. The receptacle still needs a suitable outdoor enclosure and cover; WR does not mean waterproof.
Can one GFCI breaker protect the 20A receptacle?
Potentially, if the breaker and complete installation are listed, correctly rated, compliant with the adopted code, and readily accessible for required testing and resetting. Confirm the design with the engineer and AHJ.
Do RV pedestals need tamper-resistant receptacles?
NEC 551.71 contains special treatment for the required 20A receptacle at RV-site equipment. Do not assume the dwelling-unit TR rule applies unchanged. Verify the adopted text and whether project specifications add a TR requirement.
Is an outdoor GFCI receptacle enough without a cover?
No. The device, enclosure, cover, mounting, drainage, and installation must work together for the exposure.
Should park staff reset a tripping pedestal repeatedly?
No. Disconnect the load, test the pedestal under the approved procedure, and diagnose the RV or site circuit. Repeated resetting can conceal moisture, damaged wiring, or leakage.
Final recommendation
For an RV park, specify the pedestal connection by connection. The 125-volt 15/20-amp receptacles need listed GFCI protection for personnel, and the required 20-amp site receptacle must be weather-resistant under the modern NEC framework. Treat 30A and 50A RV connections as separate engineered items, not as larger versions of a household GFCI outlet.
Before purchase, freeze the adopted code, receptacle schedule, GFCI method, WR models, enclosure, breakers, conductors, labels, listing information, and test plan. That level of detail prevents a vague “GFCI pedestal” order from turning into a field redesign.
This article provides general U.S. product-selection and code-planning information. It is not a substitute for the locally adopted electrical code, sealed project documents, manufacturer instructions, or approval by the authority having jurisdiction. Installation and testing should be performed by qualified persons.
